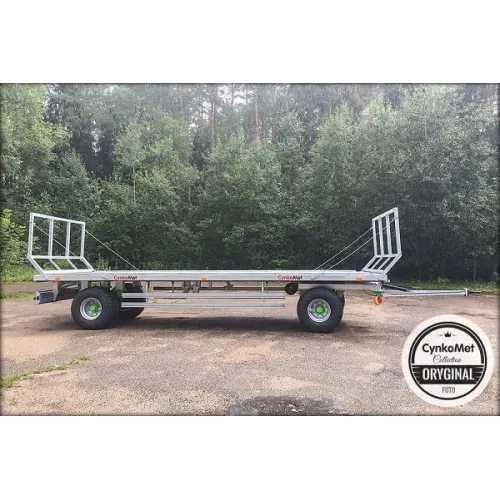

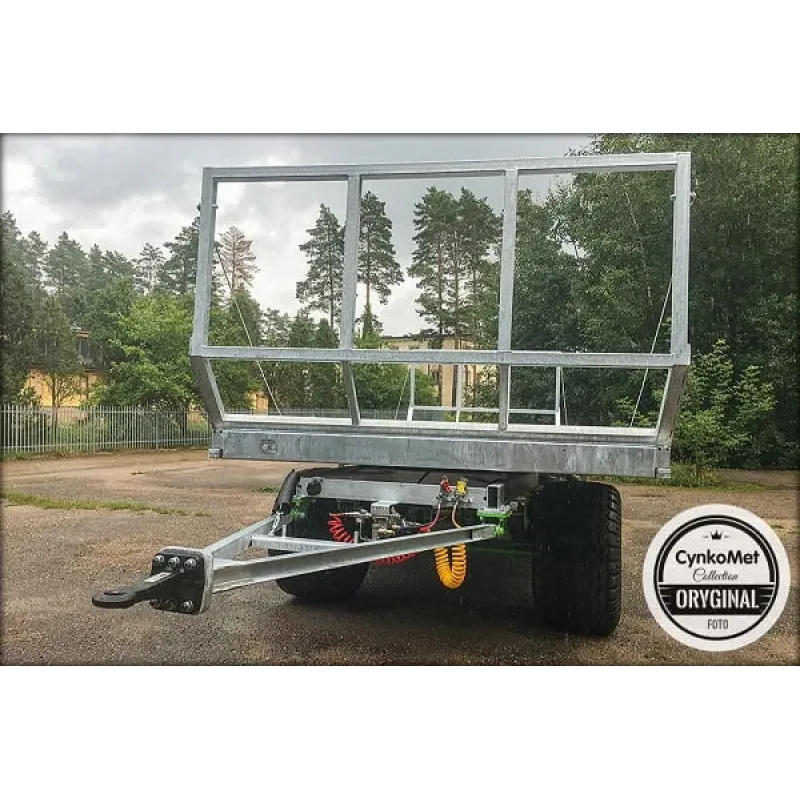

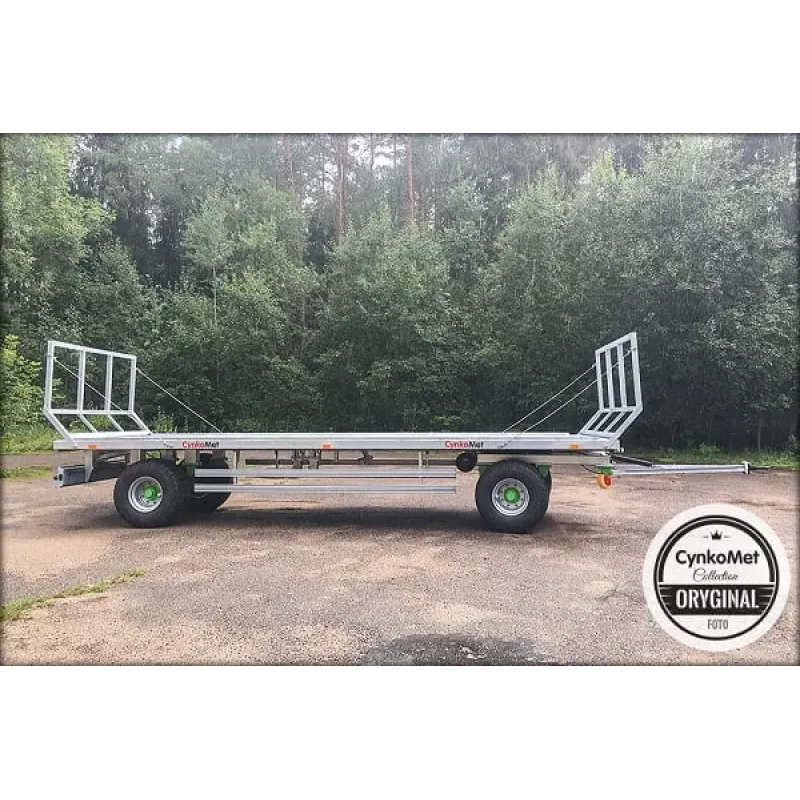

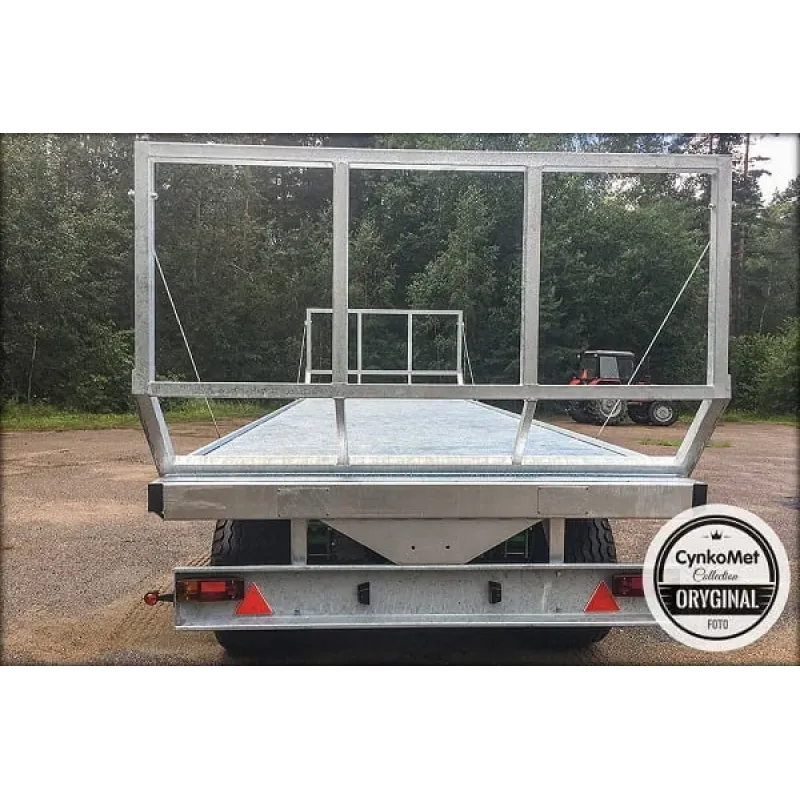

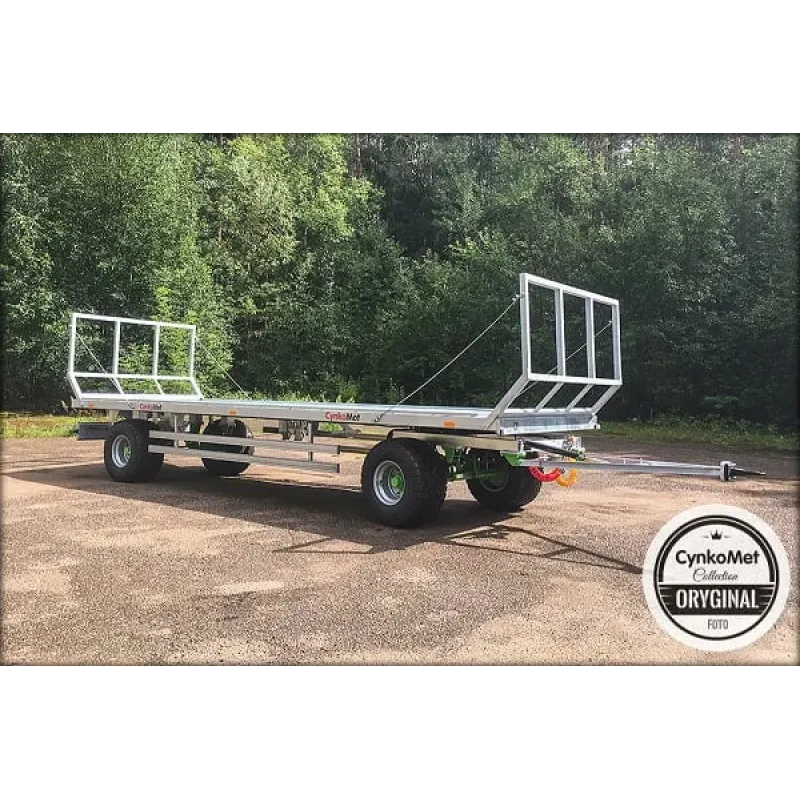

BALLE TRAILER, 10t

Technical specifications

• Unladen mass
  3000 kg
• Length
  9,965 mm
• Width
  2,540 mm
• Height (* without extensions)
  2550 mm
• Load Capacity
  10,000 kg

• Detailed specifications

• Dimensions of the cargo box (height)
  1370 mm
• Dimensions of the cargo box (width)
  2,540 mm
• Dimensions of the cargo box (length)
  8020 mm
• Suspension
  leaf spring
• Loading surface
  18.2 m2
• Floor sheet thickness
  4 mm
• Back and sideways tipping angle
  -
• Class of cooperating tractor
  80 KM
• Transport / working speed
  40 km / h
• Track of wheels
  1900 mm
• Tire type
  500 / 50-17
• Height of floor from base
  1180 mm
• Cargo capacity
  - m3
