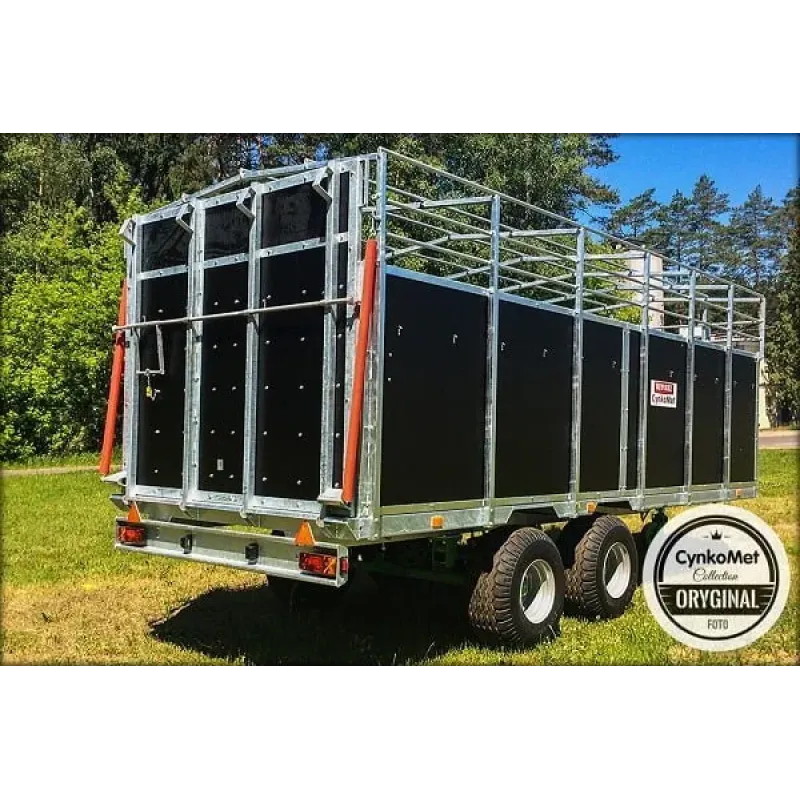

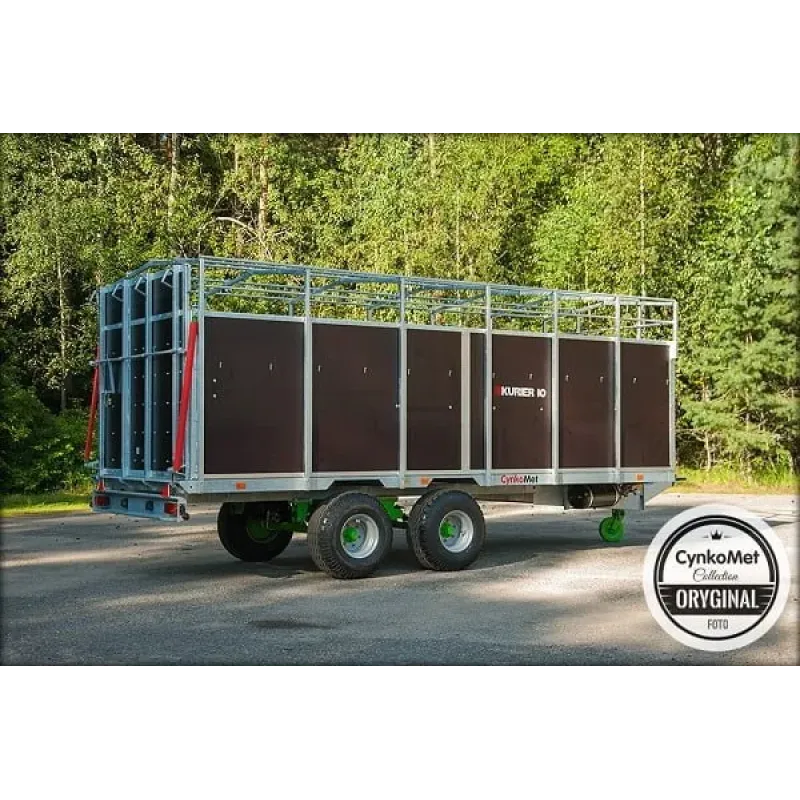

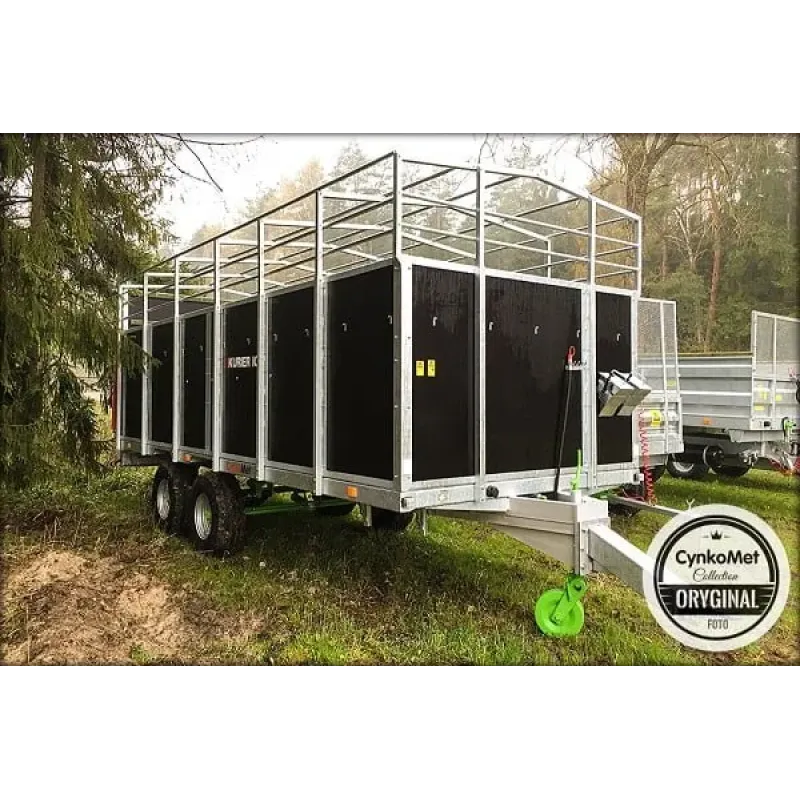

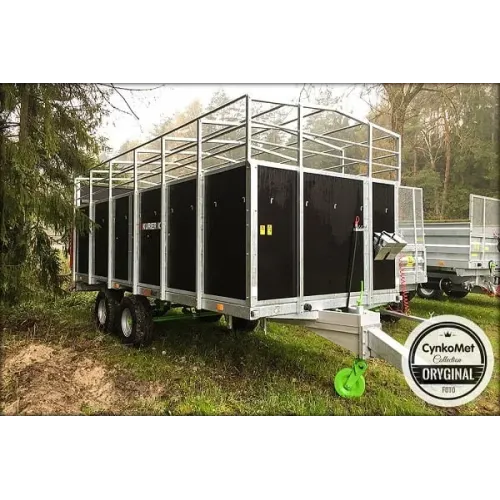

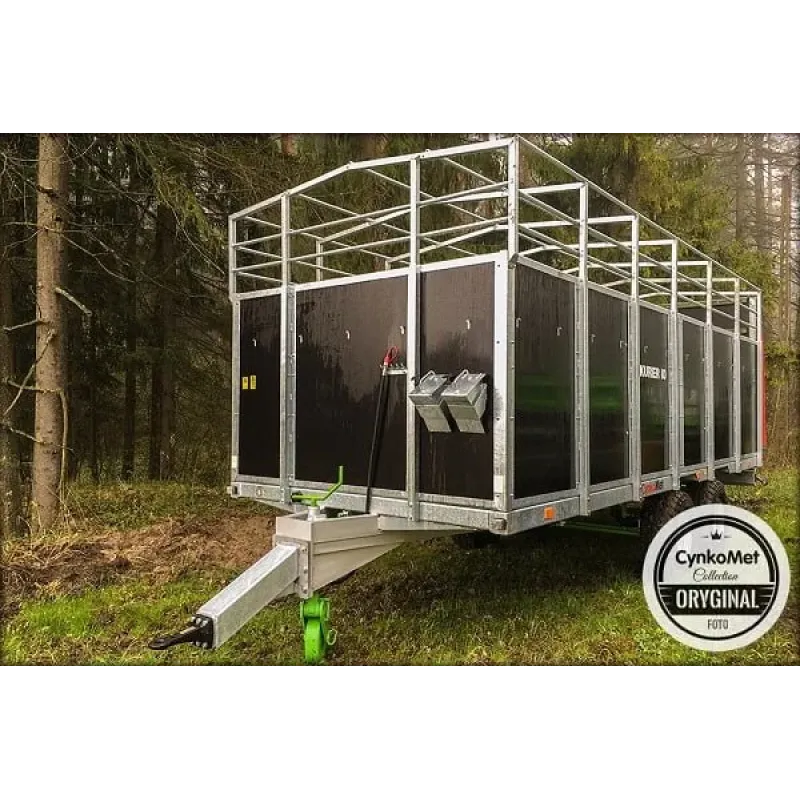

LIVESTOCK TRAILER COURIER 10

Technical specifications

• Unladen mass
  2,680 kg
• Length
  7500 mm
• Width
  2420 mm
• Height (* without extensions)
  3050 mm
• Load Capacity
  5,820 kg

• Detailed specifications

• Dimensions of the cargo box (height)
  2000 mm
• Dimensions of the cargo box (width)
  2250 mm
• Dimensions of the cargo box (length)
  5975 mm
• Suspension
  tandem, leaf springs
• Loading surface
  13.5 m2
• Floor sheet thickness
  - mm
• Back and sideways tipping angle
  -
• Class of cooperating tractor
  60 KM
• Transport / working speed
  40 km / h
• Track of wheels
  2000 mm
• Tire type
  11.5 / 80-15.3
• Height of floor from base
  1031 mm
• Cargo capacity
  27 m3
