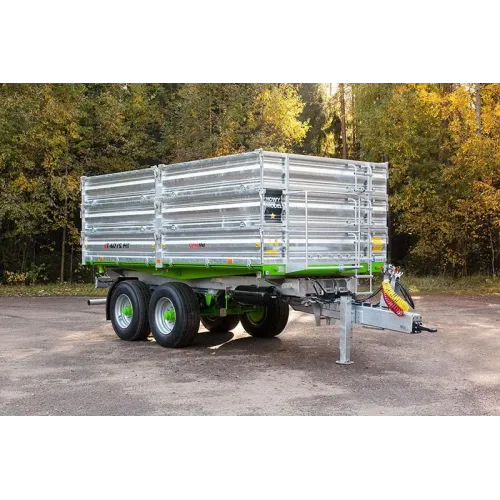

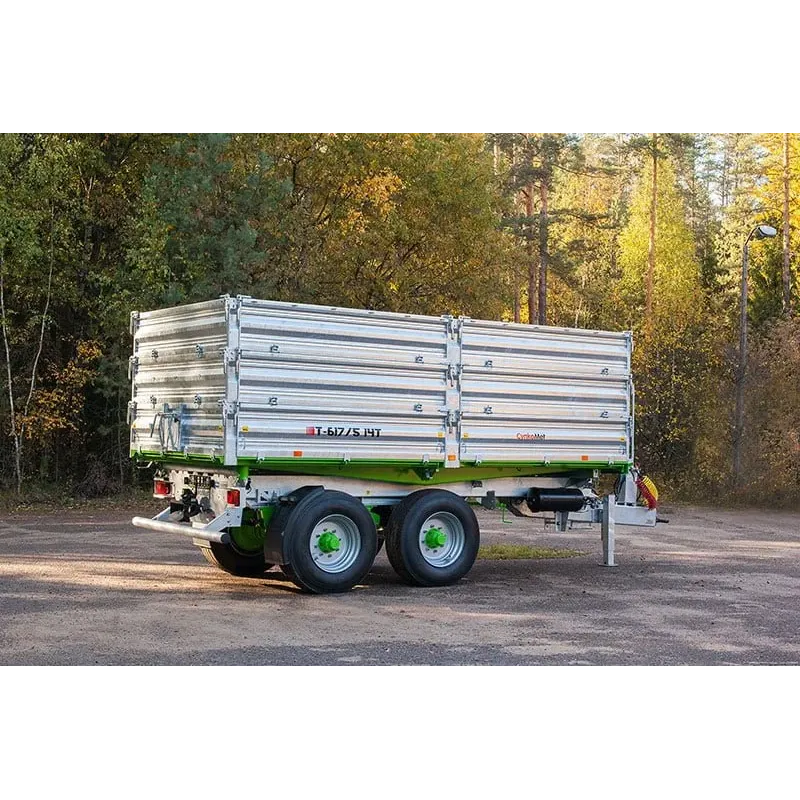

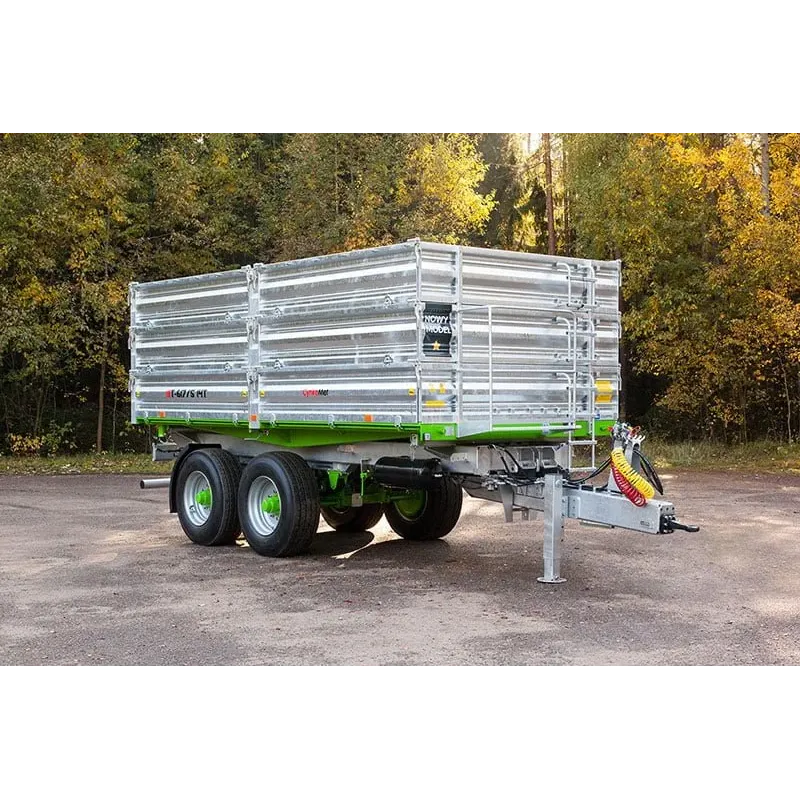

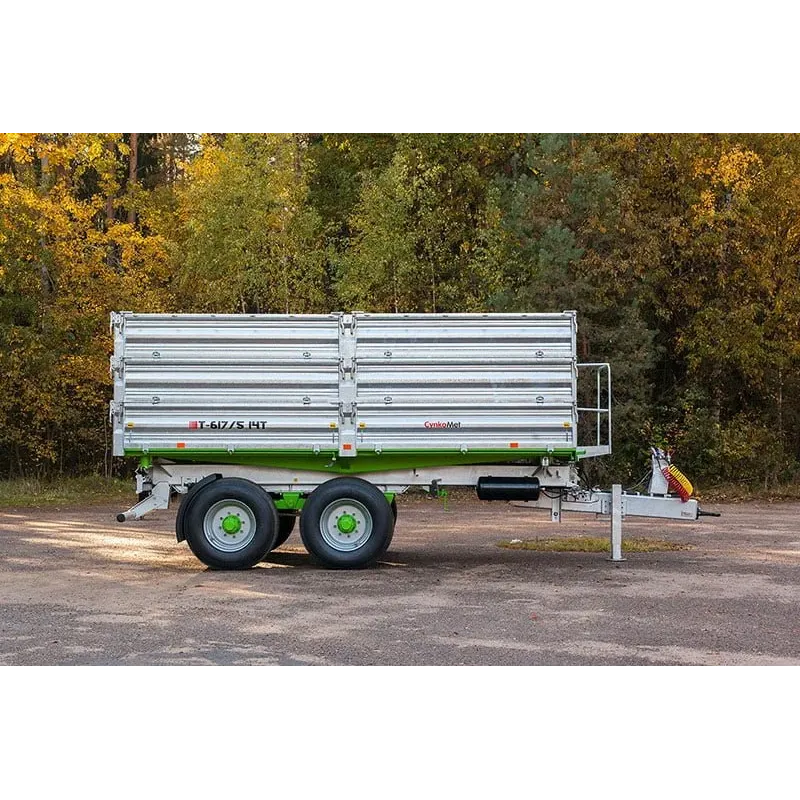

TRAILER TANDEM, 14t

Technical specifications

• Unladen mass
  4,900 kg
• Length
  7,314 mm
• Width
  2550 mm
• Height (* without extensions)
  2560 | 3060 | (2060 *) mm
• Load Capacity
  14,800 kg

• Detailed specifications

• Dimensions of the cargo box (height)
  1500 mm
• Dimensions of the cargo box (width)
  2420 mm
• Dimensions of the cargo box (length)
  5130 mm
• Suspension
  parabolic springs
• Loading surface
  12.3 m2
• Floor sheet thickness
  4 mm
• Back and sideways tipping angle
  50 °
• Class of cooperating tractor
  100 KM
• Transport / working speed
  40 km / h
• Track of wheels
  1900 mm
• Tire type
  385/65 R22.5
• Height of floor from base
  1565 mm
• Cargo capacity
  12.3 | 18.5  m3
